The Strange
Attractor
Effect
Nature's own physics — harnessed to cool 1,300W AI chips with nothing but air. No water. No pumps. No leaks. Just a COP of 10.0 — the highest efficiency of any cooling system on the market.
Green Innovation Living Inc. (GIL) has developed the world's first air-cooling module that outperforms NVIDIA's liquid cooling platform — validated on prototype HPC-M4-VC-HP-2U.
See It in Action

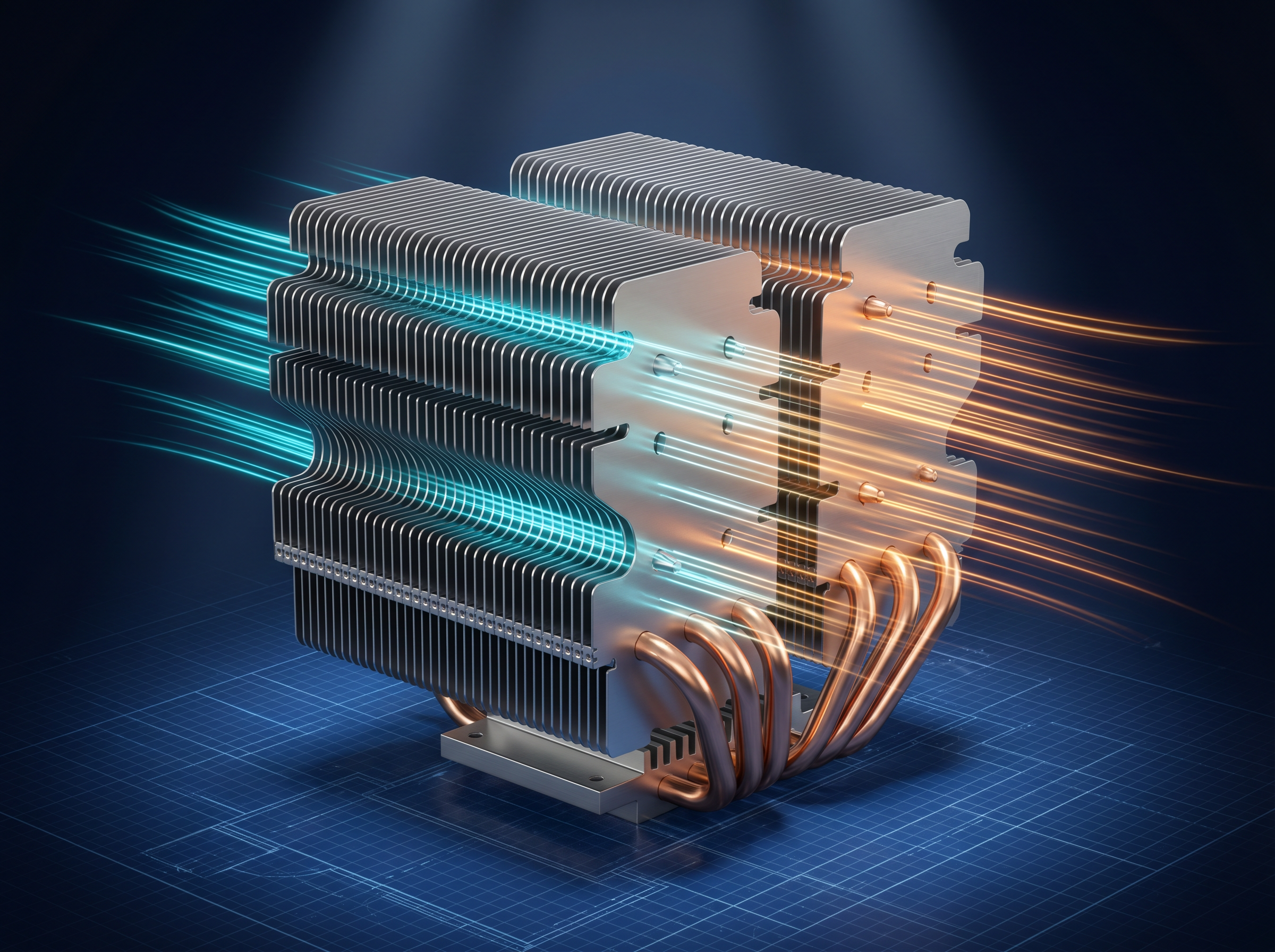

Watch how the HPC-M4-VC-HP-2U module assembles and how the Strange Attractor airflow transforms cool blue air into efficiently exhausted heat — without a single drop of liquid.
What Is a
Strange Attractor?
Imagine stirring a cup of coffee. At first, the liquid swirls in a simple circle — that's laminar flow. Stir harder and it becomes chaotic turbulence that wastes energy. But at exactly the right speed, something remarkable happens: the liquid finds a self-organizing pattern — complex, fractal, and extraordinarily efficient at mixing heat.
That sweet spot is called a Strange Attractor — a state in chaos theory where a system settles into a highly ordered, repeating pattern that maximizes energy transfer. GIL has engineered its 3D fin geometry to deliberately trigger this state in airflow at 150–230 CFM.
The result: air that behaves like a liquid coolant — reaching every surface, carrying heat away with maximum efficiency — but with none of the infrastructure, maintenance, or leak risk of actual liquid cooling.
Prototype Performance
Every number below was measured on the physical HPC-M4-VC-HP-2U prototype — not simulated, not estimated.
For every 1 watt of fan power consumed, the module removes 10 watts of heat from the chip. This is the highest COP of any cooling system commercially available.
Validated at full load on AI-class processors. The module handles the thermal output of NVIDIA's H100 and H200 GPUs — entirely with air.
Data centers replacing liquid cooling with GIL's module eliminate CDU hardware, water treatment, leak monitoring, and associated maintenance — reducing cooling electricity costs by 60–70%.
HPC-M4-VC-HP-2U — Full Technical Specifications
| Parameter | GIL HPC-M4-VC-HP-2U | Unit |
|---|---|---|
| Cooling Capacity | 1,300 | W |
| Thermal Resistance | 0.025 – 0.030 | °C/W |
| System ΔT | < 5 | °C |
| Coefficient of Performance (COP) | 10.0 | — |
| Optimal Airflow | 150 – 230 | CFM |
| Form Factor | 165 × 102 × 68 | mm (2U rack) |
| Vapor Chamber Thickness | 8 | mm |
| Water Consumption | 0 | L/min |
| CDU Infrastructure Required | None | — |
| Fin Design | Proprietary 3D Fin-Stack | — |
| Patent Status | Granted (TW) · US/PCT Pending | — |
GIL Air vs. Liquid Cooling
A direct comparison against NVIDIA's NVLink liquid cooling platform — the current industry standard.
| Metric | ✦ GIL HPC-M4-VC-HP-2U | NVIDIA Liquid Cooling |
|---|---|---|
| Cooling Capacity | 1,300 W | 1,300 W |
| Coefficient of Performance (COP) | 10.0 ✦ | 0.345 |
| Efficiency Advantage | 29× better | Baseline |
| Water Consumption | 0 L/min ✦ | 3–5 L/min |
| CDU Infrastructure | Not required ✦ | Required |
| Leak Risk | Zero ✦ | Present |
| Cooling Electricity Cost | 60–70% lower ✦ | Baseline |
| Maintenance | Minimal ✦ | Regular (pumps, filters, fluid) |
| Deployment Complexity | Drop-in 2U module ✦ | Full plumbing required |
| Patent Protection | Granted (TW) · US/PCT Pending | Proprietary |
Why the World
Needs This Now
The AI computing boom has created a cooling crisis. A single modern AI server rack can draw over 100 kW of power, and up to 40% of that is consumed by cooling alone. Data centers are running out of water, power, and physical space to install liquid cooling infrastructure.
GIL's Strange Attractor module eliminates the need for Coolant Distribution Units (CDUs), water treatment systems, and leak monitoring — reducing the total cost of ownership for a 1,000-server data center by an estimated $2–4 million per year.
This is not an incremental improvement. It is a fundamental rethinking of how heat is managed at scale — and it arrives at exactly the moment the industry needs it most.
Why This Cannot Be Easily Copied
GIL's competitive moat is built on three reinforcing layers that take years to replicate.
Physics Insight
Triggering the Strange Attractor state requires co-optimizing fin geometry, spacing, and airflow simultaneously. This is a fundamental physics insight — not a manufacturing process — and it cannot be reverse-engineered from the product alone.
Patent Protection
The core 3D fin-stack design is patent-granted in Taiwan and patent-pending in the US and PCT. The proprietary tooling for mass production has been developed and is held as a trade secret.
Validated Prototype
GIL has already crossed the hardest milestone — a working prototype with measured performance data. Competitors must start from zero, while GIL is ready to take large orders and move toward mass production.
Ready to Eliminate
Liquid Cooling?
Whether you are a data center operator, an AI hardware manufacturer, or a strategic investor, GIL is ready to discuss partnership, licensing, and deployment opportunities.
